Down Time Monitoring Hardware

 		Print E-mail
A range of shop floor data acquisition hardware is available for Prodigy machine utilization and down time monitoring applications.  Details of barcode, swipe card and large format display hardware are available on request.


DTM 02 Outstation - Down Time Monitor Outstation

 		Print E-mail

DTM 02The DTM02 Down Time Monitoring Outstation offers a ready made terminal interface solution for shop floor data entry and display.

Powder coated mild steel hinged enclosure pre-mounted with DTM02 keypad terminal and LED warning lamps. 4 digital inputs and 2 relay outputs included as standard. A stainless steel enclosure version is also available for 'clean' environments such as food and pharmaceutical uses.

This is the standard terminal currently used for most Prodigy based shopfloor systems.

Read more...


KPI Displays - DTM Display Node

 		Print E-mail
Overhead KPI DisplaysOverhead KPI Display screens deliver key metric information straight to the production area to inform and motivate staff.

Compact DTM Display Nodes, preconfigured with Prodigy Remote Viewstation software, allow information to be displayed that is relevant to the area in which the screen is sited.
Read more...


DTM 03 - Down Time Monitor Terminal

 		Print E-mail
DMT 03The DTM03 Down Time Monitoring Terminal makes it easy to enter and display data at shop floor level particularly in clean environments and where there is minimal space available for use or mounting.
Read more...


DTM 02 - Down Time Terminal

 		Print E-mail
DTM 02 The DTM02 Down Time Monitoring Terminal makes it easy to enter and display data at shop floor level.
Read more...


DTM NODE - Down Time Monitor Node

 		Print E-mail
DTM nodeThe DTM NODE Down Time Monitoring Node is a back of panel interface that provides I/O connectivity where an operator keypad display is not required.
Read more...


DTM Interface - Down Time Monitor Interface

 		Print E-mail
DTM interfaceA single page A4 specification sheet for the DTM Interface Machine Utilisation and Down Time Monitor Interface.
Read more...

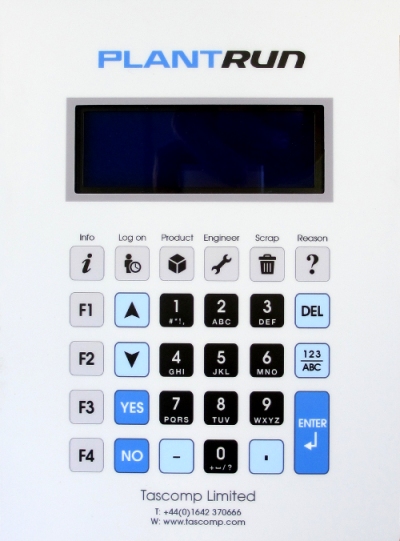

TM 01 Shop Floor Terminal

 		Print E-mail
TM 01A single page A4 specification sheet for the TM 01 Shop Floor Terminal.
Read more...
